Description
HANCHU ESS HESS-OF-S-5K — 5kW Off-Grid Inverter
The Hanchu ESS HESS-OF-S-5K is a 5kW single-phase off-grid inverter designed for residential backup and solar applications. It features a wide 120V–450V MPPT voltage range, an 18A maximum input current per MPPT, and supports a 40V–60V battery voltage range. The inverter provides 5,000W rated output power and up to 10,000VA peak output power.
Key specifications
- Model: HESS-OF-S-5K
- System Type: Off-Grid
- Phase: Single Phase
- Rated Output Power: 5,000W
- Maximum Peak Output Power: 10,000VA
- MPPT Voltage Range: 120V – 450V
- Number of MPPTs: 1
- Maximum Input Current per MPPT: 18A
- Battery Voltage Range: 40V – 60V
- Communication with BMS: RS485 / CAN / USB / Dry Contact
- Ingress Protection: IP20
HANCHU ESS HOME-ESS-LV-5.12K-R — 5.12kWh Lithium Battery
The Hanchu ESS HOME-ESS-LV-5.12K-R is a 51.2V low-voltage LiFePO4 battery with 5.12kWh of nominal energy and 95% depth of discharge. It supports a 100A nominal charge and discharge current and can be expanded by connecting up to 16 batteries in parallel. Its rack-mounted design provides a compact and flexible energy-storage solution.
Key specifications
- Model: HOME-ESS-LV-5.12K-R
- Battery Type: Lithium Iron Phosphate (LiFePO4)
- Nominal Energy: 5.12kWh
- Nominal Voltage: 51.2V
- Nominal Capacity: 100Ah
- Nominal Charge Current: 100A
- Nominal Discharge Current: 100A
- Depth of Discharge (DoD): 95%
- Parallel Expansion: Up to 16 units
- Communication: CAN / RS485
- Ingress Protection: IP54
- Dimensions: 422 × 421 × 136mm
- Weight: 44kg
- Safety Certification: IEC 62619 / CE-EMC
Combo summary

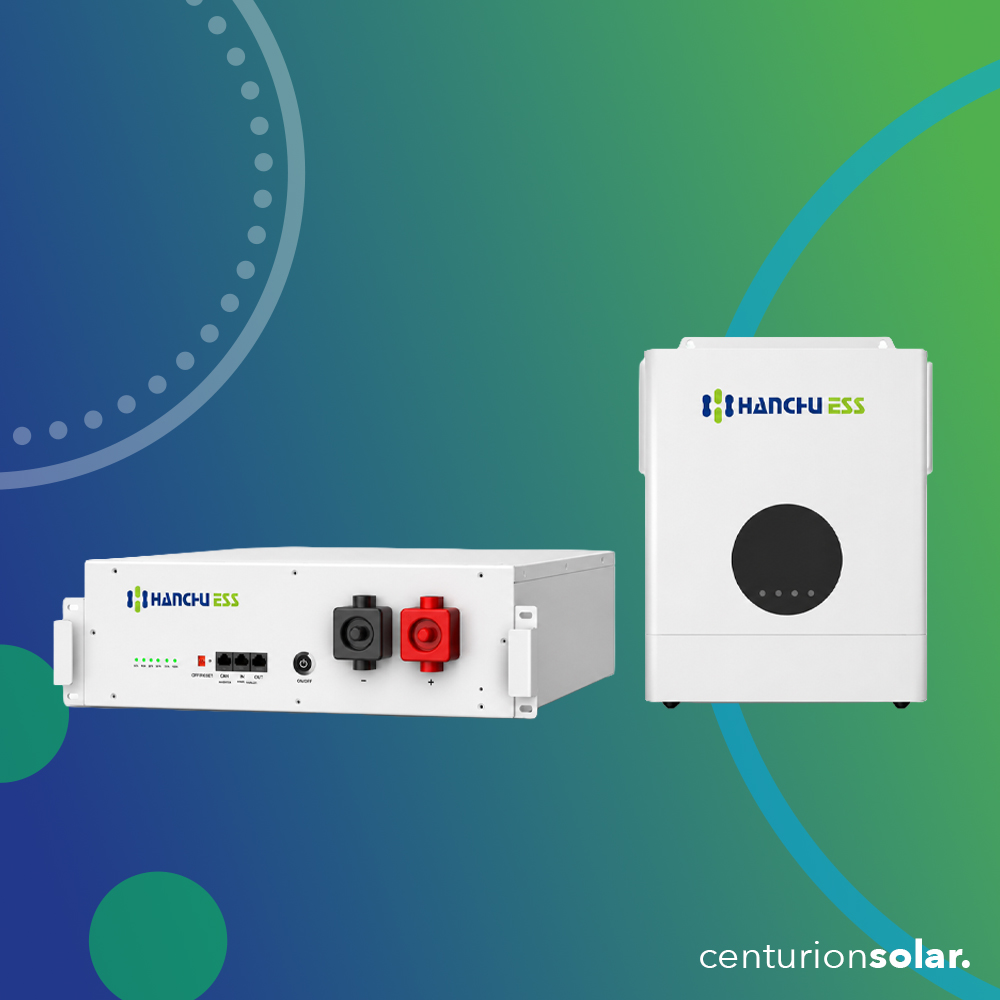

HANCHU 5kW Inverter + 5.12kWh LiFePO4 Battery
- Inverter: HESS-OF-S-5K
- Battery: HOME-ESS-LV-5.12K-R
- Inverter Output: 5kW
- Battery Capacity: 5.12kWh
- Battery Voltage: 51.2V
- Battery DoD: 95%
- Battery Charge/Discharge: 100A
- Price: R21,000 excl. VAT
- Excludes: Installation, solar panels and required safety equipment.
