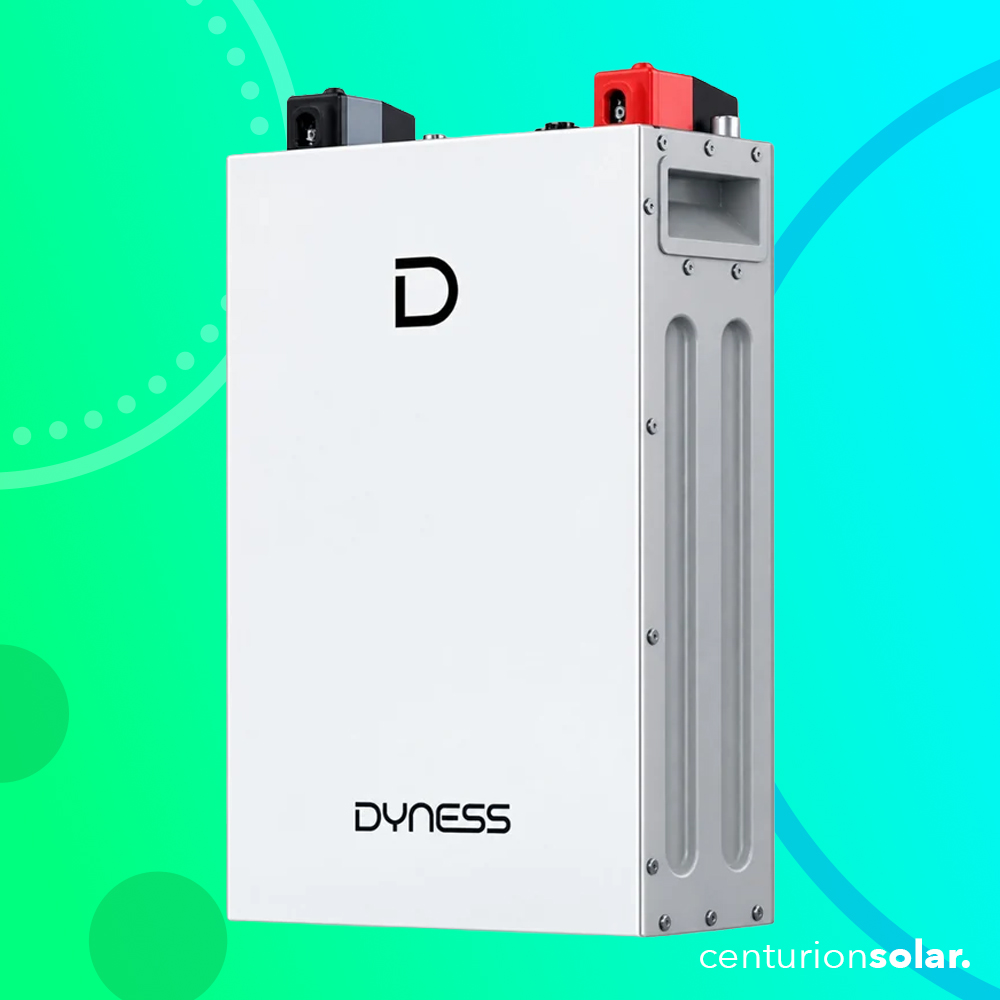

Dyness DL5.0F LIFEPO4 Battery

The Dyness DL5.0F is a LiFePO4 battery with a nominal energy of 5.12 kWh, a nominal voltage of 51.2V, and a nominal capacity of 100Ah. It features an operating voltage range of 44.8V to 57.6V, a recommended charge/discharge rate of 0.5C, and a maximum discharge rate of 1C. With 95% depth of discharge and a cycle life of ≥8,000 cycles, the DL5.0F is designed for reliable long-term energy storage. It supports wall-mounted, floor-standing, flexible bracket and rack-mounted installations, and can be expanded by connecting up to 50 units in parallel. The DL5.0F is also backward compatible with the DL5.0C range without the LINK module.

Key specifications

• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Model: DL5.0F
• Nominal Energy: 5.12 kWh
• Usable Energy: 4.864 kWh
• Nominal Voltage: 51.2V
• Nominal Capacity: 100Ah
• Operating Voltage: 44.8V – 57.6V
• Recommended C Rate: 0.5C
• Recommended Charge/Discharge Current: 50A
• Maximum Charge Current: 75A
• Maximum Discharge Current: 100A
• Peak Discharge Current: 110A (15s)
• Recommended Charge/Discharge Power: 2.56 kW
• Maximum Charge Power: 3.84 kW
• Maximum Discharge Power: 5.12 kW
• Depth of Discharge (DoD): 95%
• Cycle Life: ≥8,000 cycles
• Charging Temperature Range: 0°C to 55°C
• Discharging Temperature Range: -20°C to 55°C
• Communication: CAN / RS485
• Parallel Expansion: Up to 50 units
• Installation: Wall-mounted, floor-standing, flexible bracket or rack-mounted
• Ingress Protection: IP20
• Fire Protection: Built-in aerosol fire suppression
• User Interface: WiFi + App (optional)
• Compatibility: Backward compatible with DL5.0C range without LINK module
• Certification & Safety Standards: UN38.3, CE-EMC, CE-RED, IEC 62619, IEC 63056, RoHS, REACH
