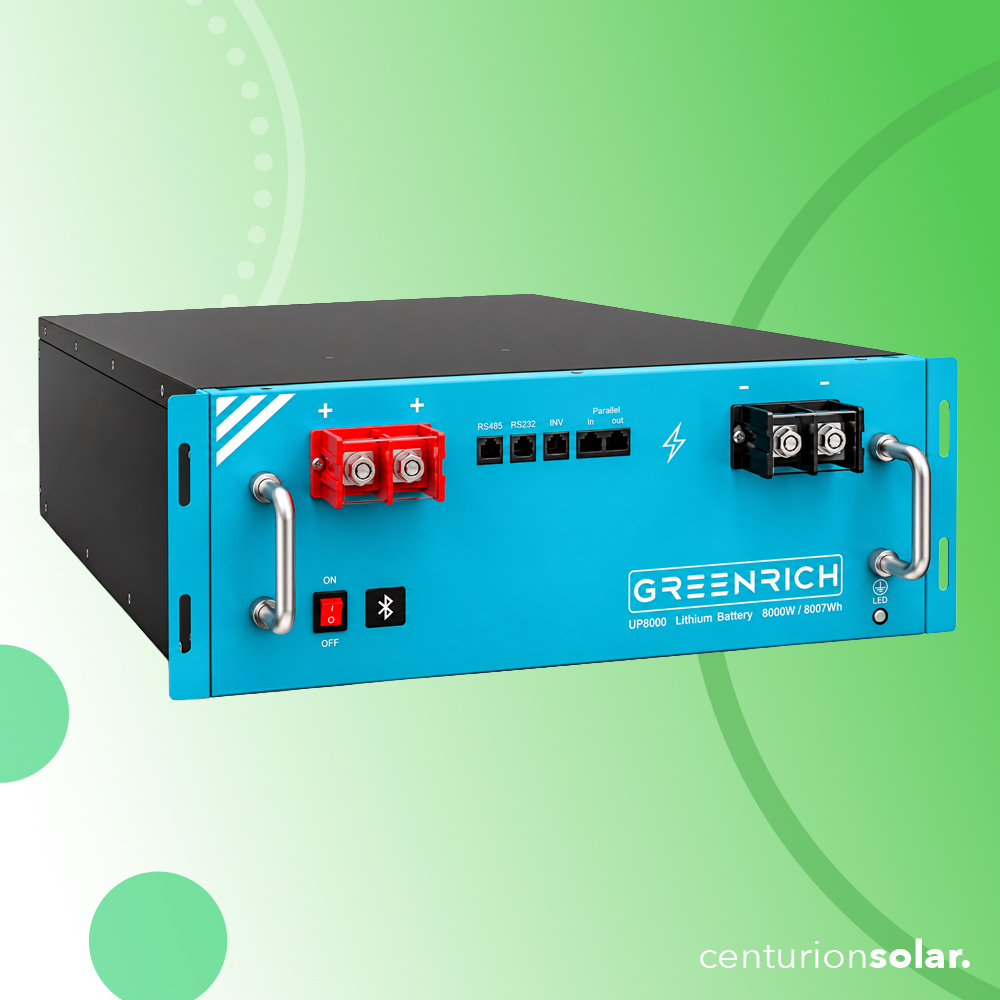

Greenrich 8kWh UP8000 1.5C High Performance Battery

Description

Greenrich UP8000 Lithium Battery

The Greenrich UP8000 is an 8.007kWh lithium battery designed for residential and commercial energy storage. It features a 51.2V nominal voltage, 1.5C cell discharge rate, Smart BMS with Wi-Fi and AI functionality, and a maximum discharge current of 160A. The battery supports a wide range of inverter brands and comes with a 10-year warranty and >6,000-cycle life.

Key specifications

• Model: UP8000
• Battery Type: Lithium Battery
• Nominal Energy: 8.007kWh
• Nominal Capacity: 156.4Ah
• Rated Voltage: 51.2V
• Cell Discharge Rate: 1.5C
• Maximum Charge Current: 100A
• Recommended Charge Current: 75A (0.5C @ 25°C)
• Charging Cut-off Voltage: 57.4V
• Maximum Discharge Current: 160A
• Recommended Discharge Current: 75A (0.5C @ 25°C)
• Peak Discharge Current: 350A (100ms)
• Discharge Cut-off Voltage: 44.8V
• Charging Modes: CC / CV / CP
• Discharging Modes: CC / CP
• Communication: RS485 / CAN / RS232
• BMS: Smart BMS
• Wi-Fi: Wi-Fi BMS with AI function
• Dimensions: 438 × 536 × 220.6mm
• Weight: Approximately 68kg
• Charging Temperature: 0°C to +50°C
• Discharging Temperature: -20°C to +60°C
• Storage Temperature: -20°C to +45°C for 3 months / -20°C to +25°C for 1 year
• Humidity: 5%–95% RH, non-condensing
• Warranty: 10 years
• Cycle Life: >6,000 cycles

Protection features

• Overvoltage and undervoltage protection
• Short-circuit protection
• High- and low-temperature charge protection
• High- and low-temperature discharge protection
• Charge and discharge over-current protection
• Dormancy function

Compatible inverter brands

The datasheet lists compatibility with Greenrich, Solis, Deye, Sunsynk, Growatt, Lux Power, Goodwe, SMA, Victron, VoltronicPower, Pylon Tech, SAJ, SofarSolar, SolaX and several others.
