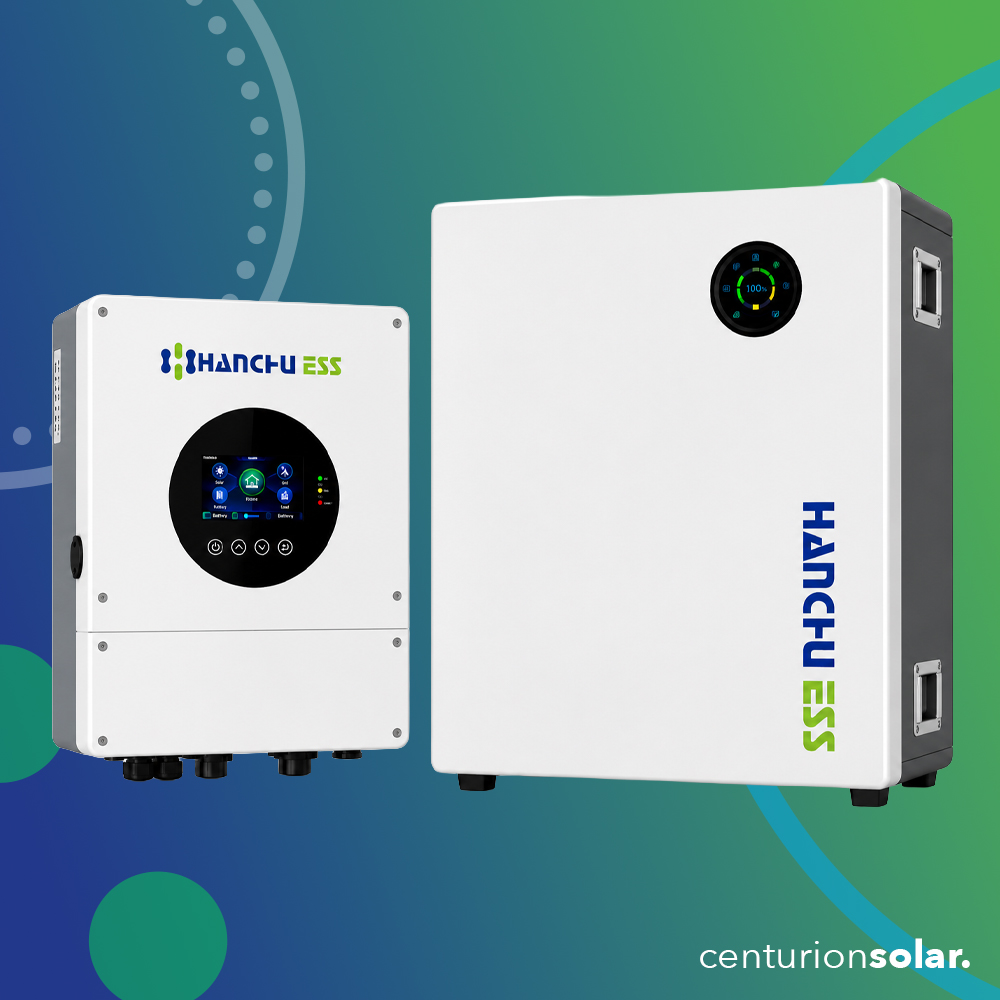

Hanchu 10kW Inverter + 9.4kWh Lithium Battery Combo Deal

HANCHU ESS HESS-OF-S-10K — 10kW Off-Grid Inverter

The Hanchu ESS HESS-OF-S-10K is a single-phase 10kW off-grid inverter designed for high-power residential energy systems. It features dual MPPTs, up to 11kW of PV input capacity, 22A maximum input current per MPPT and a 15kW peak output. It supports 48V battery systems and provides pure sine wave AC output.

Key specifications

• Model: HESS-OF-S-10K
• System Type: Off-Grid
• Phase: Single Phase
• Rated Output Power: 10,000W
• Maximum Peak Output Power: 15,000W
• Output Voltage: 230V AC
• Output Waveform: Pure Sine Wave
• Rated Battery Voltage: 48V DC
• Battery Voltage Range: 40V – 60V DC
• Number of MPPTs: 2
• Maximum PV Array Power: 11,000W (5,500W + 5,500W)
• MPPT Voltage Range: 125V – 425V
• Maximum PV Input Current: 22A + 22A
• Maximum PV Open-Circuit Voltage: 500V + 500V
• Maximum MPPT Charging Current: 200A
• Maximum Mains/Generator Charging Current: 120A
• Maximum Hybrid Charging Current: 200A
• MPPT Tracking Efficiency: 99.9%
• Battery Inverter Efficiency: Up to 92%
• Transfer Time: 10ms typical
• Communication: RS485 / CAN / USB / Dry Contact
• Optional Communication: WiFi / GPRS
• Protection Rating: IP20
• Cooling: Internal Fan
• Dimensions: 620 × 445 × 130mm
• Weight: 27kg
• Operating Temperature: -15°C to 55°C
• Safety: IEC 62109-1 / IEC 62109-2

HANCHU ESS HOME-ESS-LV-9.4K — 9.4kWh Lithium Battery

The Hanchu ESS HOME-ESS-LV-9.4K is a low-voltage LiFePO4 battery with 9.4kWh of nominal energy and a 51.2V nominal voltage. It uses blade LFP cell technology and provides 95% depth of discharge, 100A nominal charge and discharge current, and IP65 protection for indoor or suitable outdoor installations. Up to 16 units can be connected in parallel.

Key specifications

• Model: HOME-ESS-LV-9.4K
• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Cell Type: Blade LFP
• Nominal Energy: 9.4kWh
• Nominal Voltage: 51.2V
• Operating Voltage: 43.2V – 57.6V
• Nominal Charge Current: 100A
• Nominal Discharge Current: 100A
• Depth of Discharge (DoD): 95%
• Maximum Parallel Units: 16
• Protection Rating: IP65
• Cooling: Natural Convection
• Communication: CAN / RS485 / WiFi / Bluetooth
• Dimensions: 430 × 150 × 800mm
• Weight: 72kg
• Charging Temperature: 0°C to 50°C
• Discharging Temperature: -20°C to 60°C
• Humidity: ≤95%
• Safety Certification: IEC 62619 / IEC 63056 / CE
• Transport Certification: UN38.3
• Warranty: 10 years
