Description

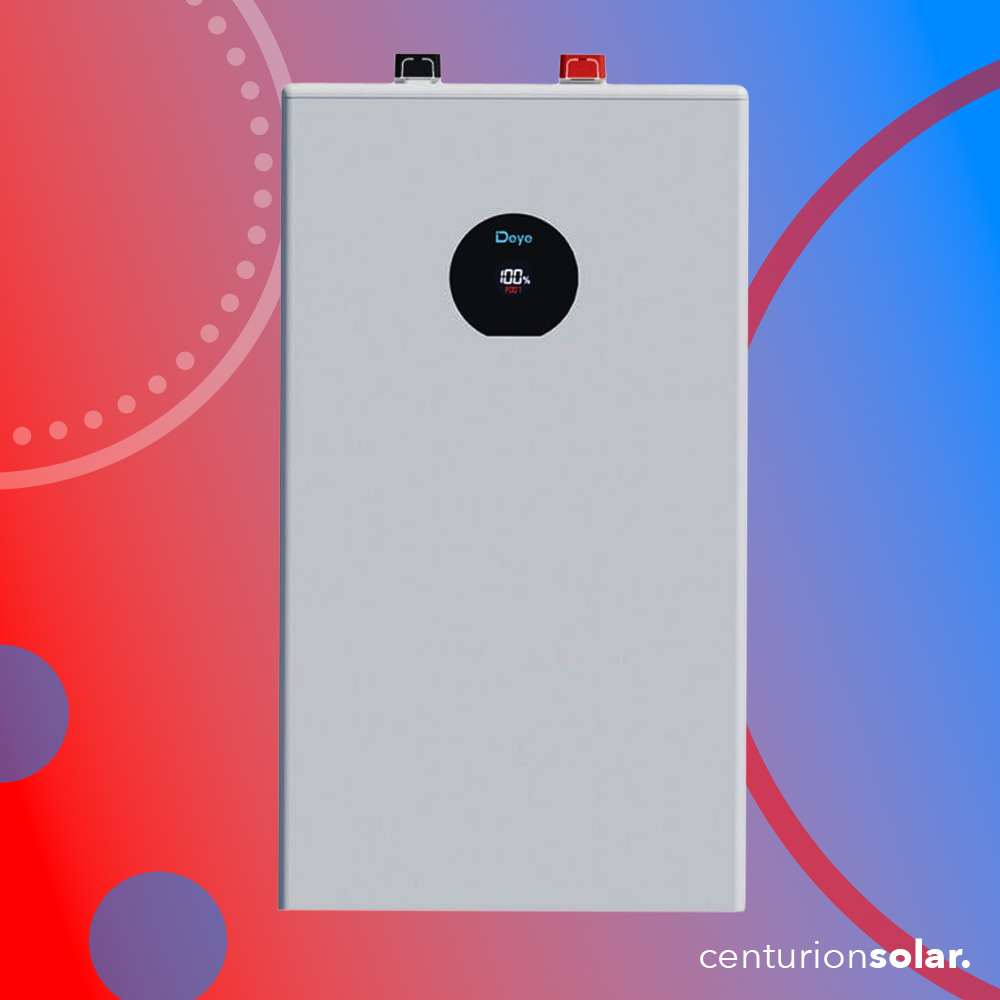

Deye SE-F16 – 16kWh LiFePO4 Battery
The Deye SE-F16 is a low-voltage 16kWh LiFePO4 battery with a nominal capacity of 314Ah and a 51.2V nominal voltage. It offers more than 6,000 cycles, a continuous discharge current of up to 230A, integrated BMS with active fuse protection, and flexible wall, floor or stack mounting.
Key specifications
- Model: SE-F16
- Battery Type: Lithium Iron Phosphate (LiFePO4)
- Nominal Energy: 16 kWh
- Nominal Capacity: 314 Ah
- Nominal Voltage: 51.2V
- Operating Voltage: 44.8V – 57.6V
- Maximum Continuous Discharge Current: 230A
- Cycle Life: >6,000 cycles
- Parallel Expansion: Up to 32 units
- Communication: CAN 2.0 / RS485 / Bluetooth App
- BMS: Integrated BMS with active fuse
- Installation: Wall-mounted / Floor-standing / Stack-mounted
- Weight: Approximately 109kg
- Dimensions (W × H × D): 400 × 708 × 233mm
- Warranty: 5 or 10 years, depending on installation location
- Certification: UN38.3 / CE / CB
- Product Category: Low Voltage (LV) Series
